Application of Huada LB series servo and K series servo drivers in wire drawing machine

1.Introduction

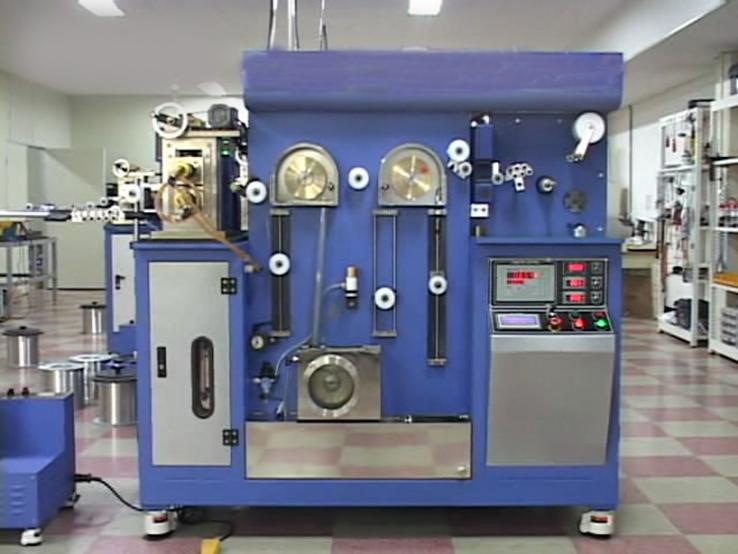

Drawing machine is also called wire drawing machine, material drawing machine and straightening machine. Its English name is: drawing machine. The wire drawing machine belongs to the pre-processing equipment for the production of metal products such as standard parts. The purpose is to pull the wire rod or bar produced and transported by the steel manufacturer to the metal products manufacturing enterprise such as standard parts, so as to make the wire rod or bar diameter, roundness The internal metallographic structure, surface finish and straightening are all up to the requirements of raw material treatment for the production of standard parts and other metal products. Therefore, the pre-treatment quality of wire rod or bar by wire drawing machine is directly related to the product quality of standard parts and other metal products manufacturing enterprises; wire drawing machine belongs to metal wire drawing machine of metal products equipment industry, which is widely used in the production and pre-treatment of steel wire, rope making wire, prestressed steel wire, standard parts and other metal products.

Abstract: Based on the analysis of the working principle of drawing machine, this paper introduces the application of Huada LB series servo and K series servo drivers in wire drawing machine, and gives the setting of key parameters of servo drivers.

2.Drawing machine equipment composition

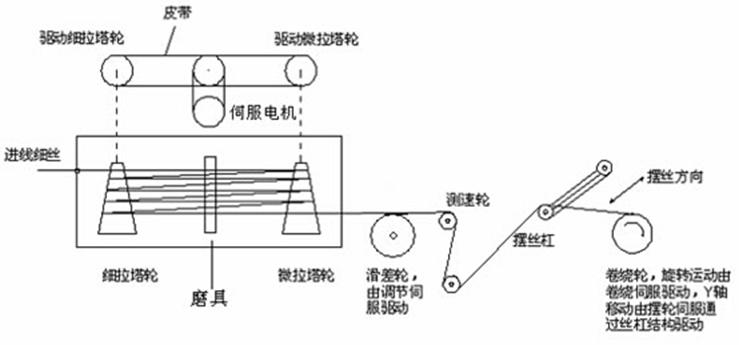

       The drawing machine is wound by two rollers. One roller is fixed and the other roller is driven by the motor. Because the winding between the two rollers is very thin, in order to prevent the copper wire from being broken, it is necessary to ensure that the torque output is stable when the motor is moving.

3、 Brief introduction of drawing machine technology
Servo principle: when the torque analog quantity is positive, the positive rotation of the motor produces tension. When the torque analog quantity is negative, the motor reverse roller retracts. The larger the given torque analog quantity is, the greater the motor torque is, and the smaller the given torque analog quantity is, the smaller the motor torque is. The wire drawing machine is wound by two rollers. One roller is fixed and the other roller is driven by the motor. Because the winding between the two rollers is very thin, in order to prevent the copper wire from being broken, it is necessary to ensure that the torque output is stable when the motor is moving.
4、 Commissioning precautions

In order to ensure the reliable, stable and correct operation of the servo driver, the following points should be paid attention to during the installation, commissioning and use of the servo system
1）Correct wiring: K series servo driver is equipped with encoder line and motor power line as standard, but the signal line between servo driver and controller must be connected correctly when wiring, otherwise the servo will not operate normally;
2）Correct setting of servo control mode: because each machine application is different, the correct setting of servo control mode is the premise to ensure the correct operation of servo.
3）Make sure the motor is well grounded and the driver is connected to the equipment casing. On the one hand, avoid interference, on the other hand, avoid leakage.
4）The shielded twisted pair shall be selected as far as possible for the signal wire, and the shielding layer is generally connected to the terminal shell.
5）Pay attention to the interference to avoid the interference to the encoder signal and control signal. The encoder line and signal line shall not be bound together with the motor line and power line or pass through a trunking, and try to keep a certain distance.

4、 Conclusion


This drawing machine fully combines the advantages of Huada LB series servo and K series servo drivers, such as fast response, accurate positioning and stable operation. After the trial use of customers, the processed products meet the requirements of customers, and all indicators meet the requirements. At the same time, the production efficiency is improved, so that customers can achieve the maximum satisfaction.
