Application of LB series and K1 servo driver of Huada servo motor in slitting machine
1.Introduction

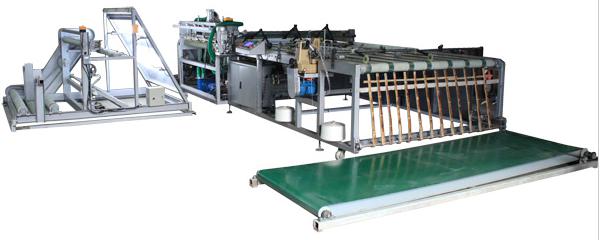

The sewing machine is an important splitting, cutting and sewing equipment in the woven bag industry. It does not need any mold. It directly cuts and sews the products according to the cutting and sewing production process of the woven bag through the control of the system software. It only needs to set the corresponding parameters on the operation platform, and it is highly automated, simple to operate, and the products produced are standard and tidy. It can completely replace the previous heavy physical labor, reduce the error rate, reduce the human consumption, and integrate the performance advantages of the woven bag equipment of the sewing machine, which inject new vitality into the production of woven bags and improve the production efficiency.
Characteristics are as follows
1、 It can automatically finish the fixed length thermal cutting and bottom sewing of the woven tube cloth, saving labor.
2、 Touch screen setting, PLC control, servo motor drive, precise control of bag length.
3、 After thermal cutting, the bag does not stick and is easy to open.
4、 Automatic counting, bag can be stacked.
5、 Pneumatic feeding, convenient operation and labor saving.
2.Equipment function and commissioning requirements
This product is suitable for the processing and packaging of various cement bags, flour bags, feed bags, sugar bags, fertilizer bags, etc. All processes of feeding, folding, sewing, breaking, receiving, cutting and counting of woven bags can be completed by one person, which are closely matched and do not interfere with each other.
The equipment process is divided into roll up – cutting – holding – sewing bottom – bag collection.
The correct operation method of the whole machine of weaving bag hot seam.
1、The woven bag hot seam machine hangs the cloth on the shaft, on the pressing wheel which overwhelms the hot seam, the pneumatic automatic feeding.
2、Automatic correction.
3、Color mark tracking, servo control bag length.
4、Hot cutting, automatic rubbing, cold knife device.
5、PLC centralized control, color man-machine interface, set data, display and record.
6、Frequency control, automatic counting.
7、 Automatic bag folding and conveying.
Device parameters
Rated voltage: two-phase / three-phase
Sewing needle pitch: 5-14mm
Bag cutting speed: 20 ~ 40pcs / min
Bag cutting length: 500 ~ 1300mm
Bag cutting width: 800mm
Debugging requires precise positioning of servo driver to ensure uniform bag length and neat stitching track.
2.System building
System composition: PLC, touch screen
Servo configuration:K1AS08AA*2、K1AS15AA、K1AS30AA
Motor model: 60ST-M01930 (cold knife), 80ST-M02430 (bag shooting), 110ST-M05030 (mechanical claw), 130ST-M15025 (roller)
Cold knife, mechanical claw, roller wiring (pulse position control)
PLC side | Servo DB25 terminal | Remark |
Pulse | 1 | Connection 2K resistance |
Direction | 2 | Connection 2K resistance |
0v | 14、15、6、3 | |
Pulse cleaning | 19 | |
Alarm output | 16 |
Bag shooting (internal position control)
PLC side | Servo DB25 terminal | Remark |
0v | 6 | |
Return home signal | 20 | Pnp |
Start signal | 7 | |
0v | 3 | |
Alarm output | 16 |
The host computer is connected with the control end of the servo driver, and the driver and related calculation base plate are fixed in the electric cabinet. The servo driver receives the pulse command from the host computer and drives the motor to drive the machine head to complete the corresponding action.
2.Related parameter settings
Cold knife (pulse position control)
Parameter number | Set value | Meaning |
PA000 | 0010 | Control mode |
PA005 | 2 | Motor code |
PA006 | 20 |
Electrical machinery manufacturer |
PA100 | 700 | Velocity loop gain |
PA102 | 200 | Position loop gain |
PA202 | 10 |
Electronic gear ratio molecule |
PA509 | 9909 | Internal enable |
Mechanical gripper (pulse position control)
Parameter number | Set value | Meaning |
PA000 | 0010 | Control mode |
PA005 | 13 | Motor code |
PA006 | 20 | Electrical machinery manufacturer |
PA100 | 800 | Velocity loop gain |
PA102 | 330 | Position loop gain |
PA202 | 10 | Electronic gear ratio molecule |
PA509 | 9909 | Internal enable |
Roller wiring (pulse position control)
Parameter number | Set value | Meaning |
PA000 | 0010 | Control mode |
PA005 | 27 | Motor code |
PA006 | 80 | Electrical machinery manufacturer |
PA100 | 800 | Velocity loop gain |
PA102 | 180 | Position loop gain |
PA202 | 5 | Electronic gear ratio molecule |
PA509 | 9909 | Internal enable |
PA510 | 0010 | Pulse cleaning |
Bag shooting (internal position control)
Parameter number | Set value | Meaning |
PA000 | 00C0 | Control mode selected as internal position |
PA005 | 5 | Motor code |
PA006 | 20 | Manufacturer code |
PA200 | 0002 | Clear offset pulse |
PA509 | 9909 | Internal enable |
PA510 | 0000 | Definition of input port |
PA512 | 9293 | Definition of input port |
PA700 | 2 | Group 0 data group mode |
PA701 | 0000 | Position low (unit 1 pulse) |
PA702 | 0004 | Position high (unit: 10000 pulse) |
PA703 | 500 | running speed |
PA704 | 1002 | Change condition |
PA770 | 100b | Return to zero mode |
The sewing machine is equipped with Huada servo motor LB series and K1 servo driver, which can realize automatic loading and unloading, uniform bag length, neat sewing track, stable operation, fast rhythm, high efficiency, and fully meet customer requirements.
